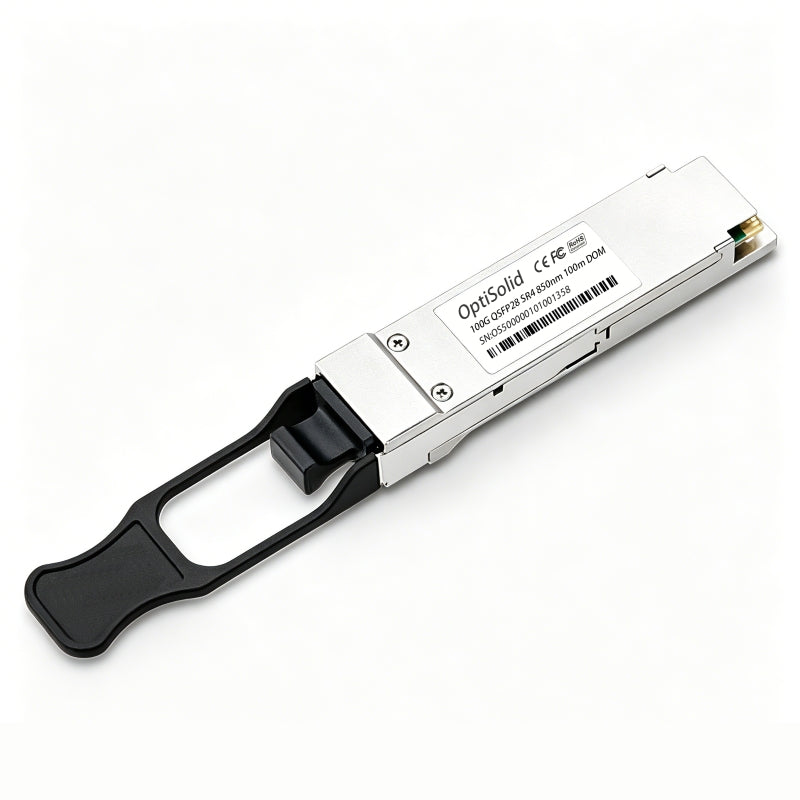

100G QSFP28 SR4 850nm 100m DOM Transceiver, 100% Compatible with Cisco & NVIDIA
100G QSFP28 SR4 850nm 100m DOM Transceiver, 100% Compatible with Cisco & NVIDIA
Couldn't load pickup availability
100G QSFP28 SR4 850nm 100m DOM Transceiver | 100% Compatible with Cisco & NVIDIA
OptiSolid 100G QSFP28 SR4 optical transceiver provides ultra-high-speed 100Gbps transmission for AI computing clusters, cloud data centers and enterprise core networks. Fully compliant with IEEE 802.3bm and QSFP28 MSA standards, it is pre-programmed and 100% tested for plug-and-play compatibility with Cisco data center switches and NVIDIA (Mellanox) network adapters, DPUs and InfiniBand systems.
- ✅ 100% Compatibility: Fully compatible with Cisco switches & NVIDIA Mellanox devices, zero alarms, plug-and-play
- ✅ Ultra-High Speed 100G Transmission: 850nm VCSEL array laser, 100m over OM3 MMF, 150m over OM4 MMF
- ✅ Full DOM/DDM Real-time Monitoring: Supports temperature, voltage, Tx/Rx power and bias current diagnostics
- ✅ MPO-12 Connector: Standard interface for 100G data center multimode fiber links
- ✅ Commercial Temperature: 0°C ~ 70°C, low power consumption, hot-pluggable design
Technical Specifications
| Form Factor | QSFP28 (Quad Small Form-Factor Pluggable 28) |
| Data Rate | 100Gbps (4x25G Channels) |
| Wavelength | 850nm |
| Transmission Distance | 100m (OM3) / 150m (OM4) over Multimode Fiber (MMF) |
| Connector | MPO-12 Female |
| Laser Type | VCSEL Array |
| DOM Support | Full DDM/DOM Real-time Monitoring |
| Operating Voltage | 3.3V |
| Operating Temperature | 0°C ~ 70°C (Commercial Grade) |
Compatible Devices
Compatible with Cisco Series
Nexus 9000, 3000, 7000 Series Data Center Switches; Catalyst 9500, 8500 Series Switches; ASR 9000 Series Routers
Compatible with NVIDIA (Mellanox) Series
ConnectX-5/6/7 Network Adapters; BlueField-2/3 DPUs; Spectrum-2/3 Switches; Quantum InfiniBand Systems
Can't find your model? Contact us for compatibility confirmation within 1 hour.
Typical Applications
- AI GPU server clusters & high-performance computing (HPC)
- Cloud data center 100G ToR switch interconnection
- 100G Ethernet & InfiniBand high-speed links
- Enterprise core network backbone transmission
- 100G network expansion, fault replacement and equipment upgrade
Frequently Asked Questions
Q: Is this module plug-and-play with Cisco/NVIDIA devices?
A: Yes, 100% tested before shipment, no compatibility alarms, full DOM & InfiniBand support.
Q: What fiber cable do I need?
A: OM3/OM4 multimode fiber with MPO-12 connectors.
Q: Can this module be used for AI server 100G connections?
A: Yes, it is specially designed for 100G AI computing and data center applications.
Q: Do you support bulk orders for data centers?
A: Yes, we offer exclusive wholesale pricing and dedicated technical support for large-scale deployments.
Legal Disclaimer
OptiSolid is an independent third-party company of optical transceivers. We are not affiliated with, sponsored by, or endorsed by Cisco Systems, Inc. or NVIDIA Corporation. All brand names, trademarks and model numbers are used solely for compatibility demonstration purposes.
