10G SFP+ 10GBASE-T RJ45 30m Copper Module | 100% Compatible with Fortinet Firewall

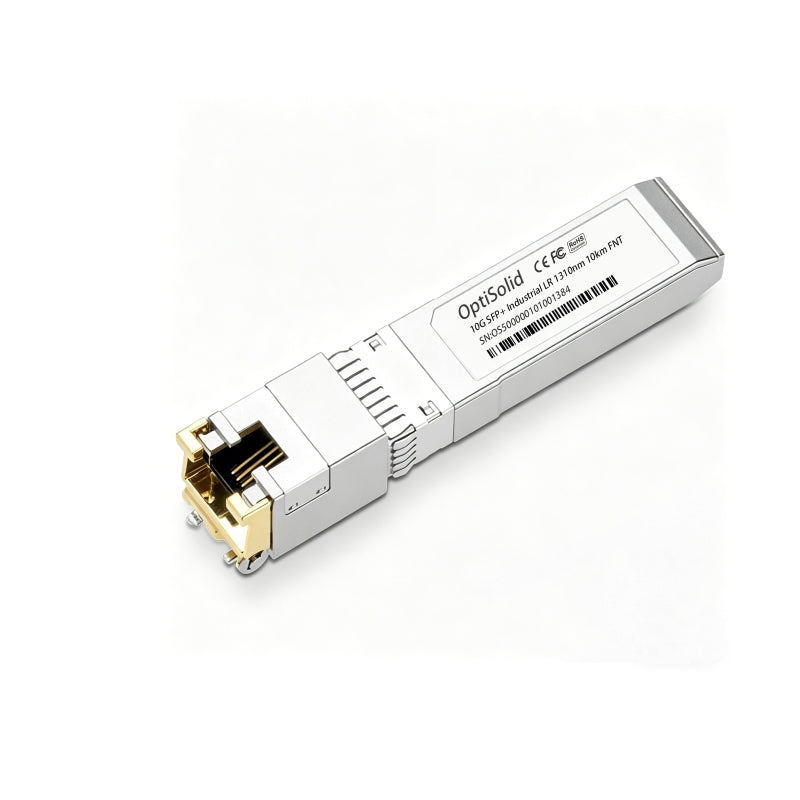

OptiSolid 10G SFP+ 10GBASE-T RJ45 copper transceiver is specially programmed for full compatibility with Fortinet Firewall 10G SFP+ ports. It adopts Cat6a/Cat7 copper cables for 10Gbps bidirectional data transmission, featuring a standard RJ45 (8P8C) interface and built-in Marvell chip, delivering stable 10Gbps connectivity up to 30 meters. Fully plug-and-play with no Fortinet compatibility warnings and no module pairing required, it is an ideal replacement for Fortinet FN-TRAN-SFP+GC series 10GBASE-T copper modules in data centers, enterprise LANs, rack-to-rack connections and Fortinet Firewall short-distance deployment scenarios.
- ✅ 100% Plug & Play with All Fortinet Firewall 10G SFP+ Ports
- ✅ RJ45 (8P8C) Interface, 30m Transmission Over Cat6a/Cat7 Copper Cables
- ✅ Built-in Marvell Chip, Low Power Dissipation (≤2.5W) for Energy Efficiency
- ✅ No "Unknown Module" Alerts in Fortinet FortiOS
- ✅ EMC (Electromagnetic Compatibility) Supported for Stable Operation
- ✅ Compact & Hot-Pluggable SFP+ Form Factor, Easy to Install
- ✅ High Reliability, MTBF Up to 5,000,000 Hours
- ✅ No Module Pairing Required, Direct Single Use Available
Important 10GBASE-T Copper Cable Notice
This is a 10G SFP+ 10GBASE-T RJ45 copper module. For full 10Gbps transmission up to 30m, Cat6a/Cat7 UTP/STP copper cables are highly recommended. Using Cat6 cables will reduce the transmission distance to no more than 15m, while Cat5e or lower-grade cables will cause severe signal loss and connection failure. No pairing required—plug-and-play compatible with Fortinet FortiOS. Note: For Fortinet Firewall devices with NP6 chips (excluding NP6xlite), do not mix 10G and 1G interfaces. Keep the module away from strong electromagnetic interference to maintain stable operation.
Full Fortinet Firewall Compatibility List
Fortinet Firewall Series (10G SFP+ Port Equipped)
- FortiGate 600E, FortiGate 800E, FortiGate 1000E, FortiGate 1500D
- FortiGate 2000E, FortiGate 3000E, FortiGate 4000E, FortiGate 6000F
- All Fortinet Firewall models with 10G SFP+ ports (compatible with all FortiOS versions)
Technical Specifications
| Form Factor | SFP+ (Small Form-Factor Pluggable Plus) |
| Type | 10G SFP+ 10GBASE-T RJ45 Copper Module |
| Data Rate | 10.3125 Gbps (10GBASE-T), dedicated to 10Gbps transmission |
| Transmission Distance | Up to 30m over Cat6a/Cat7 copper cables; up to 15m over Cat6; Cat5e or lower not supported |
| Medium Type | Cat6a/Cat7 UTP/STP Copper Cables (Cat6 for short-distance use only) |
| Connector | RJ45 (8P8C), compatible with standard copper Ethernet cables |
| DOM/DDM Support | Not Implemented (consistent with Fortinet FN-TRAN-SFP+GC specifications) |
| Operating Temperature | 0°C ~ 70°C (Commercial Grade); Storage Temperature: -40°C ~ 85°C |
| Operating Voltage | 3.3V (Single Power Supply) |
| Power Dissipation | ≤2.5W (Built-in Marvell Chip for Energy Efficiency) |
| Fortinet Equivalent | FN-TRAN-SFP+GC |
| Special Features | Built-in Marvell Chip, EMC Compatible, Hot-Pluggable, No Pairing Required, High MTBF (5,000,000 hrs), Energy Efficient |
Typical Applications
- Short-distance 10G connections for Fortinet Firewall devices in data centers, enterprise LANs and wiring closets
- Reliable 10G links using Cat6a/Cat7 copper cable infrastructure, suitable for intra-rack and inter-rack connections
- Fortinet Firewall deployments requiring high-speed, short-distance connectivity (up to 30m) with cost-effective copper transmission
- Point-to-point 10G connections for Fortinet Firewall to switches, servers and other network devices in data center racks
- Upgrade and replacement for Fortinet FN-TRAN-SFP+GC 10G SFP+ 10GBASE-T RJ45 copper modules
- Enterprise networking scenarios requiring stable 10G short-distance connectivity with easy installation and low power consumption
Legal Disclaimer
OptiSolid is an independent third-party optical transceiver company. We are not affiliated with, endorsed by, or sponsored by Fortinet. All brand names, trademarks and model numbers (including FN-TRAN-SFP+GC) are used only for compatibility demonstration.
Frequently Asked Questions
Q: Can I use this copper module alone with Fortinet Firewall?
A: Yes. No pairing required. Plug-and-play compatible with Fortinet Firewall 10G SFP+ ports, enabling stable 10Gbps transmission over Cat6a/Cat7 copper cables up to 30m.
Q: Will this show as an unknown device in Fortinet FortiOS?
A: No. It is fully programmed to avoid compatibility warnings and support stable operation in Fortinet FortiOS, consistent with Fortinet native 10GBASE-T copper module performance.
Q: What copper cable do I need?
A: Cat6a/Cat7 UTP/STP copper cables are highly recommended for full 30m 10Gbps transmission. Cat6 cables reduce the distance to no more than 15m. Cat5e or lower will cause signal loss and connection failure. Standard RJ45 connectors are required.
Q: Is there any note for deploying with Fortinet Firewall?
A: Yes. For Fortinet Firewall devices with NP6 chips (excluding NP6xlite), do not mix 10G and 1G interfaces. Ensure the copper cable is properly terminated, keep the module away from strong electromagnetic interference, and use Cat6a/Cat7 cables for optimal performance.
Q: Is this module compatible with all Fortinet Firewall 10G SFP+ ports?
A: Yes, it is fully compatible with all Fortinet Firewall models featuring 10G SFP+ ports, with no additional configuration needed. Suitable for data center intra-rack/inter-rack connections, enterprise LANs and other short-distance deployment scenarios.
