10G SFP+ BIDI 1270/1330nm 20km Single Mode (A Side) | 100% Compatible with MikroTik

10G SFP+ BIDI 1270/1330nm 20km Single Mode (A Side) | 100% Compatible with MikroTik

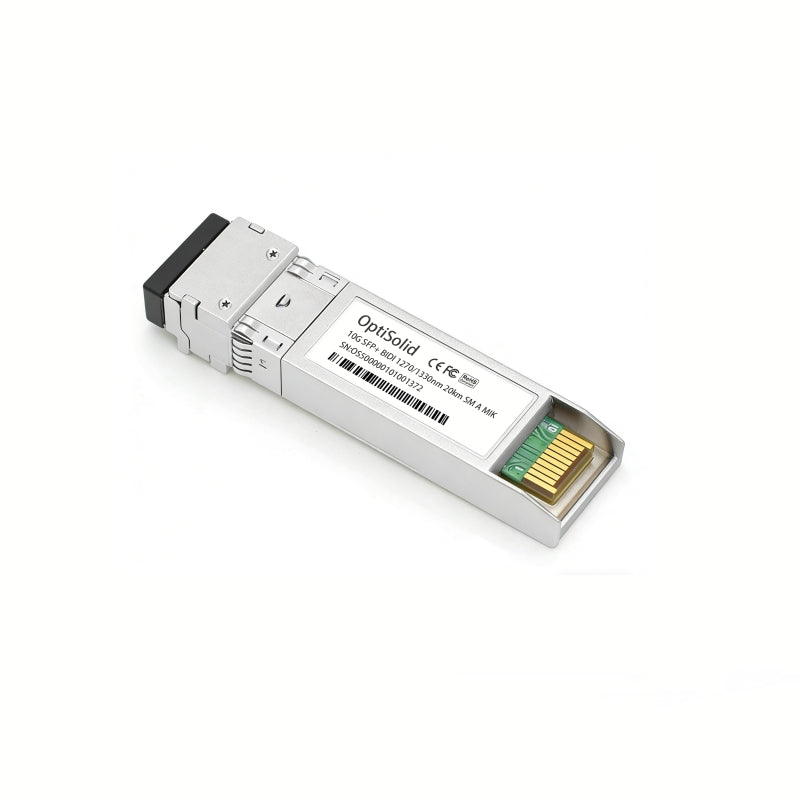

OptiSolid 10G SFP+ BIDI (A Side) transceiver is specially programmed for full compatibility with MikroTik 10G SFP+ ports. It adopts single strand single-mode fiber for bidirectional data transmission, with TX wavelength 1270nm and RX wavelength 1330nm, delivering stable 10Gbps connectivity up to 20km. Fully plug-and-play with no MikroTik compatibility warnings, it is an ideal replacement for MikroTik S+23LC20D series BIDI (A Side) modules in commercial and enterprise environments, greatly saving fiber resources by using only one fiber for both transmit and receive functions.

• ✅ 100% Plug & Play with All MikroTik 10G SFP+ Devices
• ✅ Stable 10Gbps Link Up to 20km Over OS2 Single Mode Fiber
• ✅ Commercial Temperature Range: 0°C ~ 70°C for Daily Use
• ✅ No "Unknown Module" Alerts in MikroTik RouterOS
• ✅ Full DOM/DDM (DDMI) Real-Time Monitoring Supported
• ✅ LC Simplex Connector, Compact & Hot-Pluggable
• ✅ Single Strand Single-Mode Fiber Transmission, Compliant with IEEE 802.3ae
• ✅ Low Power Dissipation (<1W) for Energy Efficiency

Important Fiber Notice

This is a 10G SFP+ BIDI (A Side) single-mode module, compliant with 10GBASE-BX20 standards. For full 10Gbps transmission up to 20km, OS2 9/125μm single-mode fiber (single strand) is required. This A Side module (1270nm TX / 1330nm RX) must be paired with a BIDI B Side module (1330nm TX / 1270nm RX) on the opposite end. It is fully compatible with MikroTik RouterOS, supporting real-time DOM/DDM monitoring and stable data transmission without compatibility errors.

Full MikroTik Compatibility List

MikroTik Routers

• CCR1036-8G-2S+, CCR1036-8G-2S+EM, CCR1072-1G-8S+, CCR2004-1G-4S+
• RB1100AHx4, RB3011UiAS-RM, RB4011iGS+RM, RB5009UG+S+IN

MikroTik Switches

• CRS326-24G-2S+RM, CRS317-1G-16S+RM, CRS309-1G-8S+RM
• CRS504-4XQ-IN, CRS508-4XQ-IN, CRS510-8XQ-IN
• All MikroTik switches with 10G SFP+ ports

Technical Specifications

Typical Applications

• Long-distance 10G connections between MikroTik devices in enterprise, campus and inter-building environments
• Cost-saving 10G links using single-mode fiber, reducing fiber resource usage by 50% compared to duplex transmission
• MikroTik network deployments requiring high-speed, long-distance connectivity with efficient fiber utilization
• Point-to-point 10G connections for medium-to-large enterprise networks, long-distance backhaul and service provider applications
• Upgrade and replacement for MikroTik S+23LC20D BIDI (A Side) modules

Legal Disclaimer

OptiSolid is an independent third-party optical transceiver company. We are not affiliated with, endorsed by, or sponsored by MikroTik. All brand names, trademarks and model numbers are used only for compatibility demonstration.

Frequently Asked Questions

Q: Can I use this BIDI (A Side) module alone?
A: No. This is an A Side BIDI module (1270nm TX / 1330nm RX) and must be paired with a BIDI B Side module (1330nm TX / 1270nm RX) on the opposite end, using a single strand of OS2 single-mode fiber for bidirectional transmission.

Q: Will this show as an unknown device in MikroTik RouterOS?
A: No. It is fully programmed to avoid compatibility warnings and support normal monitoring in MikroTik RouterOS, including DOM/DDM data display.

Q: What fiber cable do I need?
A: OS2 9/125μm single-mode fiber (single strand) is required for 20km 10Gbps transmission, compliant with IEEE 802.3ae (10GBASE-BX20) standards. LC simplex connectors are required for proper connection.

Q: Is this hot-pluggable on MikroTik switches?
A: Yes, fully hot-pluggable; no power-off required for installation or removal, compatible with MikroTik hot-plug standards.

Q: Is this module compatible with all MikroTik 10G SFP+ ports?
A: Yes, it is fully compatible with all MikroTik devices featuring 10G SFP+ ports, including routers, switches and aggregation devices, with no additional configuration needed.
