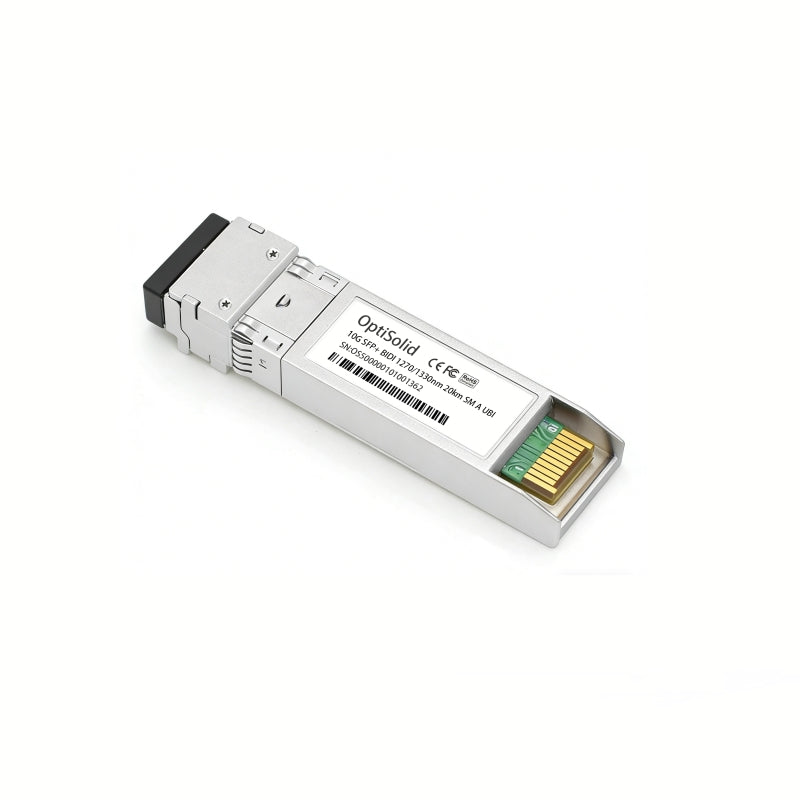

10G SFP+ BIDI 1270/1330nm 20km Single Mode (A Side) | 100% Compatible with Ubiquiti UniFi

10G SFP+ BIDI 1270/1330nm 20km Single Mode (A Side) | 100% Compatible with Ubiquiti UniFi

OptiSolid 10G SFP+ BIDI (Bidirectional) A Side transceiver is specially programmed for full compatibility with Ubiquiti UniFi 10G SFP+ ports. It transmits and receives data over a single strand of single-mode fiber, saving cabling costs while delivering stable 10Gbps connectivity up to 20km. Fully plug-and-play with no UniFi compatibility warnings, it is an ideal replacement for Ubiquiti UF-SM-10G-S series BIDI modules.

• ✅ 100% Plug & Play with All Ubiquiti UniFi 10G SFP+ Devices
• ✅ Bidirectional Transmission Over One Single-Mode Fiber (Cost-Saving)
• ✅ A Side: Tx 1270nm / Rx 1330nm (Must be used with B Side Pair)
• ✅ Stable 10Gbps Link Up to 20km Over OS2 Single Mode Fiber
• ✅ No "Unknown Module" Alerts in UniFi Network Controller
• ✅ Full DOM/DDM Real-Time Monitoring Supported
• ✅ LC Simplex Connector, Compact & Hot-Pluggable
• ✅ Commercial Temperature Range: 0°C ~ 70°C

Important Pairing Notice

This is A Side module. To establish a link, you must use it together with a B Side (1330/1270nm) module on the other end. They are sold in pairs or separately.

Full UniFi Compatibility List

UniFi Gateways

• UDM Pro, UDM Pro SE, UDM SE, UXG-Pro

UniFi Switches

• USW-Enterprise-XG-6POE, USW-Enterprise-XG-24
• USW-Aggregation, USW-Aggregation-Pro, USW-Pro-Aggregation
• US-16-XG-150W, US-48-XG-750W
• All UniFi switches with 10G SFP+ uplink ports

Technical Specifications

Typical Applications

• Long-distance 10G fiber links between buildings or campuses
• UniFi gateway 10G fiber WAN/backhaul with limited fiber resources
• Point-to-point 10G connections using only one fiber core
• FTTH and enterprise private line 10G transmission
• Upgrade and replacement for Ubiquiti BIDI optical modules

Legal Disclaimer

OptiSolid is an independent third-party optical transceiver company. We are not affiliated with, endorsed by, or sponsored by Ubiquiti Inc. All brand names, trademarks and model numbers are used only for compatibility demonstration.

Frequently Asked Questions

Q: Can I use this BIDI A Side module alone?
A: No. It must be used with a BIDI B Side (1330/1270nm) module on the opposite end to create a working link.

Q: Will this show as an unknown device in UniFi Controller?
A: No. It is fully programmed to avoid compatibility warnings and support normal monitoring in UniFi Network Controller.

Q: What fiber cable do I need?
A: One strand of 9/125μm OS2 single-mode fiber with LC simplex connectors.

Q: Is this hot-pluggable on UniFi switches?
A: Yes, fully hot-pluggable; no power-off required for installation.

Q: How far can this module transmit?
A: It supports stable 10Gbps transmission up to 20 kilometers over standard OS2 single-mode fiber.
