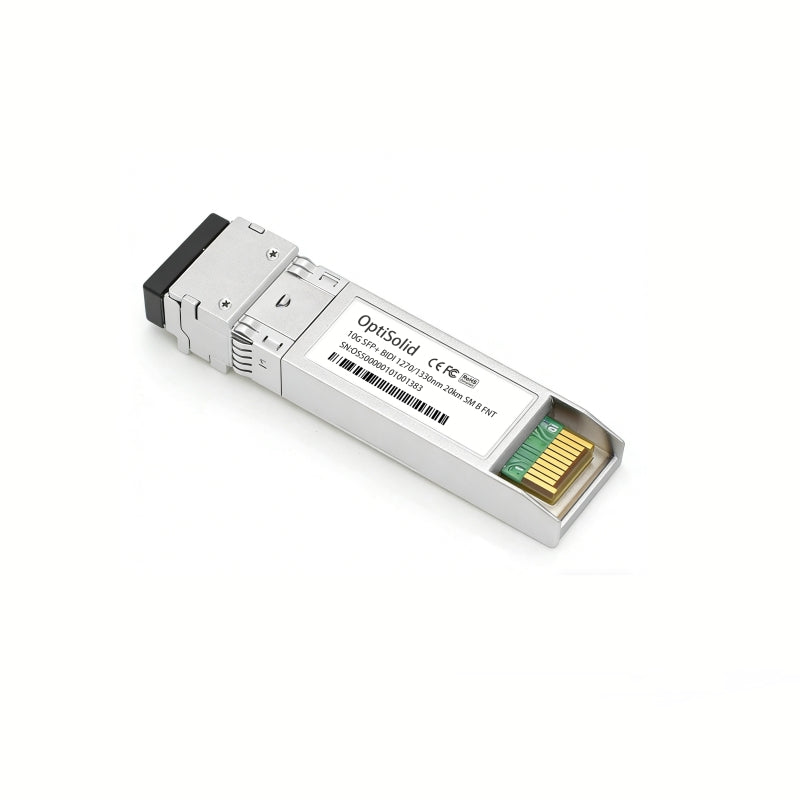

10G SFP+ BIDI 1330/1270nm 20km Single Mode (B Side) | 100% Compatible with Fortinet Firewall

10G SFP+ BIDI 1330/1270nm 20km Single Mode (B Side) | 100% Compatible with Fortinet Firewall

OptiSolid 10G SFP+ BIDI (B Side) transceiver is specially programmed for full compatibility with Fortinet Firewall 10G SFP+ ports. It adopts 9/125μm single-mode fiber for bidirectional data transmission via a single strand of fiber, featuring 1330nm (TX) / 1270nm (RX) DFB laser, delivering stable 10Gbps connectivity up to 20km. As the B Side module, it must be paired with an A Side BIDI module (1270nm TX / 1330nm RX) for normal operation. Fully plug-and-play with no Fortinet compatibility warnings, it is an ideal replacement for Fortinet FG-TRAN-SFP+LR series BIDI modules in data centers, enterprise WAN/metro networks, campus backbones and Fortinet Firewall long-distance deployment scenarios.

• ✅ 100% Plug & Play with All Fortinet Firewall 10G SFP+ Ports
• ✅ 10GBASE-BX Standard, Compliant with IEEE 802.3ae & SFP+ MSA
• ✅ BIDI B Side: 1330nm (TX) / 1270nm (RX), 20km Over 9/125μm Single-Mode Fiber
• ✅ Single Strand Fiber Transmission, Significantly Saves Fiber Resources
• ✅ No "Unknown Module" Alerts in Fortinet FortiOS
• ✅ Full DOM/DDM (DDMI) Real-Time Monitoring Supported (SFF-8472 Compliant)
• ✅ LC Simplex Connector, Compact & Hot-Pluggable
• ✅ 1330/1270nm DFB Laser, Low Transmission Error Rate (≤10⁻¹²)
• ✅ Low Power Dissipation (<1.5W) for Energy Efficiency
• ✅ Must Pair with A Side BIDI Module (1270nm TX / 1330nm RX) for Operation

Important BIDI Single Mode Fiber Notice

This is a 10G SFP+ BIDI (B Side) single-mode module, compliant with IEEE 802.3ae, SFP+ MSA and SFF-8431 standards. It adopts BIDI bidirectional transmission technology (WDM), enabling bidirectional data transmission over a single strand of fiber. For full 10Gbps transmission up to 20km, 9/125μm standard single-mode fiber (LC simplex) with G.652/G.655/G.657A specifications is required. This B Side module (1330nm TX / 1270nm RX) must be paired with an A Side BIDI module (1270nm TX / 1330nm RX)—single use will result in connection failure. Do not use multi-mode fiber. For Fortinet Firewall devices with NP6 chips (excluding NP6xlite), do not mix 10G and 1G interfaces to avoid bandwidth transmission issues.

Full Fortinet Firewall Compatibility List

Fortinet Firewall Series (10G SFP+ Port Equipped)

• FortiGate 600E, FortiGate 800E, FortiGate 1000E, FortiGate 1500D
• FortiGate 2000E, FortiGate 3000E, FortiGate 4000E, FortiGate 6000F
• All Fortinet Firewall models with 10G SFP+ ports (compatible with all FortiOS versions)

Technical Specifications

Typical Applications

• Long-distance 10G connections for Fortinet Firewall devices in data centers, enterprise WAN/metro networks and campus backbones
• Reliable 10G links using single strand single-mode fiber, suitable for cost-sensitive scenarios needing fiber resource saving
• Fortinet Firewall deployments requiring high-speed, long-distance connectivity (up to 20km) with bidirectional transmission and cost-effectiveness
• Point-to-point 10G connections for Fortinet Firewall to switches, servers and other network devices in cross-office, campus backbone and WAN architectures
• Upgrade and replacement for Fortinet FG-TRAN-SFP+LR (FTLX1471D3BCL, FTLX1471D3BCLFTN) 10G SFP+ BIDI single-mode modules (B Side)
• Enterprise wiring closets and service provider transport applications requiring stable 10G long-distance connectivity with fiber cost saving

Legal Disclaimer

OptiSolid is an independent third-party optical transceiver company. We are not affiliated with, endorsed by, or sponsored by Fortinet. All brand names, trademarks and model numbers (including FG-TRAN-SFP+LR, FTLX1471D3BCL, FTLX1471D3BCLFTN) are used only for compatibility demonstration.

Frequently Asked Questions

Q: Can I use this B Side BIDI module alone with Fortinet Firewall?
A: No. This B Side module (1330nm TX / 1270nm RX) must be paired with an A Side BIDI module (1270nm TX / 1330nm RX) for normal operation. Single use will result in connection failure.

Q: Will this show as an unknown device in Fortinet FortiOS?
A: No. It is fully programmed to avoid compatibility warnings and support normal monitoring in Fortinet FortiOS, including DOM/DDM data display.

Q: What fiber cable do I need?
A: 9/125μm standard single-mode fiber (LC simplex) is required, compatible with G.652/G.655/G.657A specifications. Only a single strand of fiber is needed for bidirectional transmission. Do not use multi-mode fiber.

Q: Is there any note for deploying with Fortinet Firewall?
A: Yes. For Fortinet Firewall devices with NP6 chips (excluding NP6xlite), do not mix 10G and 1G interfaces. Ensure the single-mode fiber is properly terminated and confirm pairing with a matching A Side BIDI module before use.

Q: Is this module compatible with all Fortinet Firewall 10G SFP+ ports?
A: Yes, it is fully compatible with all Fortinet Firewall models featuring 10G SFP+ ports, with no additional configuration needed. It supports backward compatibility with 1Gbps devices and adapts to all versions of FortiOS.
