10G SFP+ BIDI 20km Single Fiber Bi-Directional DOM Transceiver, 100% Compatible with Cisco & Huawei

10G SFP+ BIDI 20km Single Fiber Bi-Directional DOM Transceiver, 100% Compatible with Cisco & Huawei

$59.99 USD
$59.99 USD
Sale Sold out
Shipping calculated at checkout.

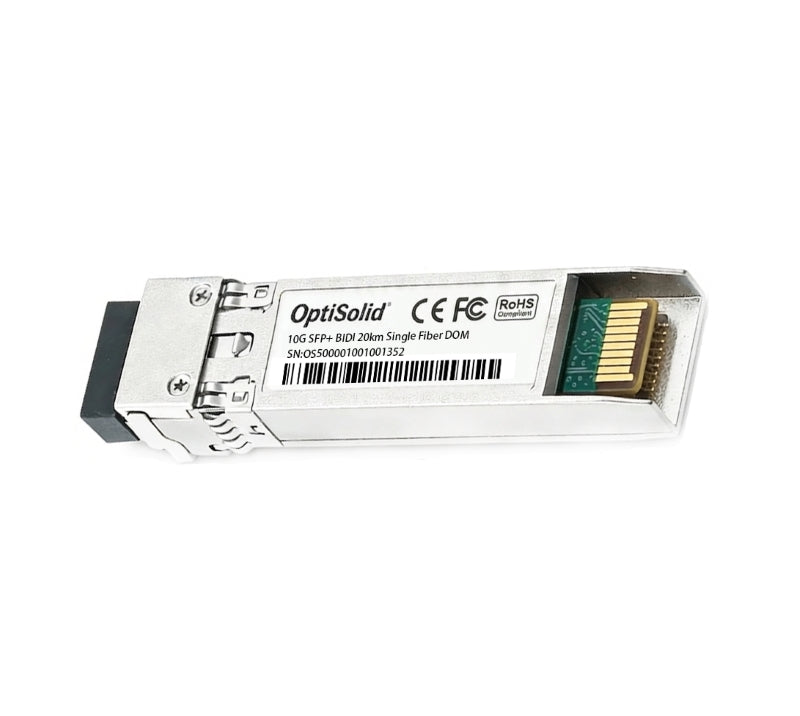

10G SFP+ BIDI 20km Single Fiber Bi-Directional DOM Transceiver

OptiSolid 10G SFP+ BIDI transceiver delivers reliable 10Gbps full-duplex connectivity over a single strand of single-mode fiber up to 20km — cutting your fiber infrastructure costs by 50% compared to standard dual-fiber transceivers. Fully compliant with IEEE 802.3ae 10GBASE-BR20 standards, every unit is pre-programmed and 100% end-to-end tested for Cisco and Huawei switches, routers, and firewalls.

Key Advantages

  • Cut Fiber Costs by 50%: Bi-directional single-fiber design uses only one strand of SMF for full-duplex transmission, eliminating the need for duplicate fiber runs
  • 100% Cisco & Huawei Interoperability: True plug-and-play, no firmware updates or manual configuration required, no compatibility alarms on your hardware
  • Stable 20km Long-Haul Transmission: Industrial-grade DFB laser with ultra-low attenuation, guaranteed error-free 10Gbps transmission up to 20km over 9/125μm SMF
  • Full Real-Time DOM Monitoring: Built-in Digital Optical Monitoring, 24/7 real-time tracking of transmit/receive power, temperature, voltage, and laser bias current
  • Global Compliance & Laser Safety: CE, FCC, RoHS certified, FDA Class 1 Laser Safety compliant, fully meets US/EU market regulations
  • 5-Year Hassle-Free Warranty: Free replacement for quality defects, 90-day free returns, 24/7 dedicated technical support

Technical Specifications

Form Factor SFP+
Data Rate 10.3125Gbps
Max Transmission Distance 20km over SMF (9/125μm)
Fiber Connector Simplex LC
Laser Type DFB Laser
DOM Support Full Digital Optical Monitoring
Operating Voltage 3.3V
Operating Temperature 0°C ~ 70°C

A End (Tx1270nm / Rx1330nm)

  • Transmit Wavelength: 1270nm ± 10nm | Receive Wavelength: 1330nm ± 10nm
  • Average Transmit Power: -6dBm ~ +1dBm | Receiver Sensitivity: ≤ -20dBm

B End (Tx1330nm / Rx1270nm)

  • Transmit Wavelength: 1330nm ± 10nm | Receive Wavelength: 1270nm ± 10nm
  • Average Transmit Power: -6dBm ~ +1dBm | Receiver Sensitivity: ≤ -20dBm

Compatibility

Cisco: Catalyst 9300, 9200, 3850, 3650, 9500, 9400, 3560, 2960-X; Nexus 9000, 7000, 5000; ASR 1000, 900; ISR 4000, 4300, 4400, 1100 Series

Huawei: S5735, S6730, S5731, S6720, S5720, S12700, S9700; AR6500, AR6300, AR2200; NE40E, NE20E; USG6000 Firewalls

Legal Notice

OptiSolid is an independent company. Not affiliated with Cisco Systems, Inc. or Huawei Technologies Co., Ltd. All brand names are property of their respective owners.
