10G SFP+ LR 1310nm 10km Single Mode | 100% Compatible with Palo Alto Networks Firewall

10G SFP+ LR 1310nm 10km Single Mode | 100% Compatible with Palo Alto Networks Firewall

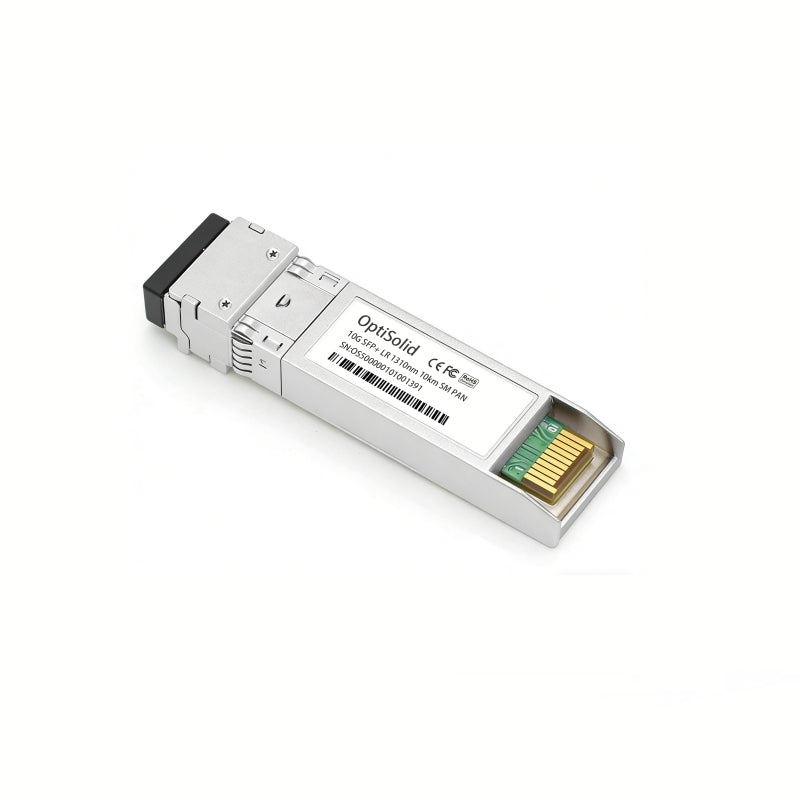

OptiSolid 10G SFP+ LR transceiver is specially programmed for full compatibility with Palo Alto Networks Firewall 10G SFP+ ports. It adopts 1310nm DFB laser and single-mode fiber (SMF) transmission, featuring a standard duplex LC (UPC) interface and built-in MAXIM chip, delivering stable 10Gbps connectivity up to 10km over OS1/OS2 single-mode fiber. With a commercial operating temperature range of 0°C ~ 70°C, it is fully plug-and-play with no Palo Alto compatibility warnings and no module pairing required. An ideal replacement for Palo Alto PAN-SFP-PLUS-LR series modules in cross-campus interconnection, remote enterprise sites, outdoor deployments and Palo Alto Networks Firewall long-distance scenarios.

• ✅ 100% Plug & Play with All Palo Alto Networks Firewall 10G SFP+ Ports

• ✅ 1310nm DFB Laser, 10km@OS1/OS2 Over Single-Mode Fiber (SMF)
• ✅ Built-in MAXIM Chip, Low Power Dissipation (≤1.2W) for Energy Efficiency
• ✅ Commercial Grade (0°C ~ 70°C), Suitable for Cross-Campus & Enterprise Environments
• ✅ No "Unknown Module" Alerts in Palo Alto PAN-OS
• ✅ Full DOM/DDM (DDMI) Real-Time Monitoring Supported (SFF-8472 Compliant)
• ✅ Duplex LC (UPC) Connector, Compact & Hot-Pluggable SFP+ Form Factor
• ✅ High Reliability, MTBF Up to 5,000,000 Hours
• ✅ No Module Pairing Required, Direct Single Use Available

Important 10GBASE-LR Single-Mode Fiber Notice

This is a 10G SFP+ LR 1310nm single-mode module. For full 10Gbps transmission up to 10km, 9/125μm OS1/OS2 single-mode fiber (duplex LC) is required. Multimode fiber is not compatible—it will cause severe signal loss and connection failure. No pairing required—plug-and-play with Palo Alto PAN-OS. Note: For PA-5400 series devices, ensure SFP+ ports are configured correctly for 10Gbps operation and avoid improper port remapping that may affect connectivity.

Full Palo Alto Networks Firewall Compatibility List

Palo Alto Networks Firewall Series (10G SFP+ Port Equipped)

• PA-5400 Series (Ports 9-20 support SFP+ 10Gbps operation)
• PA-3000 Series, PA-7000 Series, PA-8000 Series with 10G SFP+ ports
• All Palo Alto Networks Firewall models with 10G SFP+ ports (compatible with all PAN-OS versions)

Technical Specifications

Typical Applications

• Long-distance 10G connections for Palo Alto Networks Firewall devices in cross-campus interconnection and remote enterprise sites
• Reliable 10G links using OS1/OS2 single-mode fiber, suitable for outdoor deployments and long-distance networking
• Palo Alto Networks Firewall deployments requiring high-speed, long-distance connectivity (up to 10km) with stable performance
• Point-to-point 10G connections for Palo Alto Networks Firewall to switches, servers and network devices in remote enterprise environments and data center interconnections
• Upgrade and replacement for Palo Alto PAN-SFP-PLUS-LR 10G SFP+ LR single-mode modules
• Cross-campus and remote enterprise scenarios requiring stable operation in commercial temperature environments with high-speed single-mode connectivity

Legal Disclaimer

OptiSolid is an independent third-party optical transceiver company. We are not affiliated with, endorsed by, or sponsored by Palo Alto Networks. All brand names, trademarks and model numbers (including PAN-SFP-PLUS-LR) are used only for compatibility demonstration.

Frequently Asked Questions

Q: Can I use this LR single-mode module alone with Palo Alto Networks Firewall?
A: Yes. No pairing required. Plug-and-play compatible with Palo Alto Networks Firewall 10G SFP+ ports, enabling stable 10Gbps transmission over OS1/OS2 single-mode fiber up to 10km.

Q: Will this show as an unknown device in Palo Alto PAN-OS?
A: No. It is fully programmed to avoid compatibility warnings and support normal monitoring in Palo Alto PAN-OS, including DOM/DDM data display.

Q: What fiber cable do I need?
A: 9/125μm OS1/OS2 single-mode fiber (duplex LC) is required for full 10km 10Gbps transmission. Multimode fiber is not compatible and will cause severe signal loss and connection failure.

Q: Is there any note for deploying with Palo Alto Networks Firewall?
A: Yes. For PA-5400 series devices, ensure SFP+ ports are configured correctly for 10Gbps operation and avoid improper port remapping. Ensure the single-mode fiber is properly terminated and keep the module away from strong electromagnetic interference.

Q: Is this module compatible with all Palo Alto Networks Firewall 10G SFP+ ports?
A: Yes, it is fully compatible with all Palo Alto Networks Firewall models featuring 10G SFP+ ports, with no additional configuration needed. Suitable for cross-campus interconnection, remote enterprise sites, outdoor deployments and other long-distance deployment scenarios.
