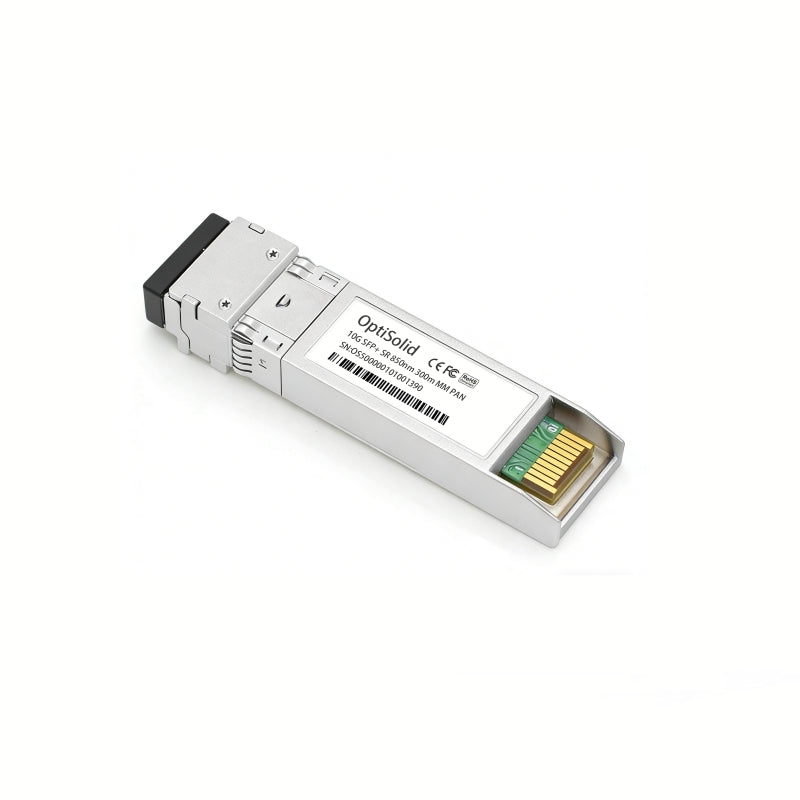

10G SFP+ SR 850nm 300m Multimode | 100% Compatible with Palo Alto Networks Firewall

10G SFP+ SR 850nm 300m Multimode | 100% Compatible with Palo Alto Networks Firewall

OptiSolid 10G SFP+ SR transceiver is specially programmed for full compatibility with Palo Alto Networks Firewall 10G SFP+ ports. It adopts 850nm VCSEL laser and multimode fiber (MMF) transmission, featuring a standard duplex LC (UPC) interface and built-in Semtec/Macom chip, delivering stable 10Gbps connectivity up to 300m over OM3 multimode fiber (up to 400m over OM4). With a commercial operating temperature range of 0°C ~ 70°C, it is fully plug-and-play with no Palo Alto compatibility warnings and no module pairing required. An ideal replacement for Palo Alto PAN-SFP-PLUS-SR series modules in data centers, enterprise wiring closets, campus networks and Palo Alto Networks Firewall short-to-medium distance scenarios.

• ✅ 100% Plug & Play with All Palo Alto Networks Firewall 10G SFP+ Ports

• ✅ 850nm VCSEL Laser, 300m@OM3 / 400m@OM4 Over Multimode Fiber (MMF)
• ✅ Built-in Semtec/Macom Chip, Low Power Dissipation (≤1W) for Energy Efficiency
• ✅ Commercial Grade (0°C ~ 70°C), Suitable for Data Center & Enterprise Environments
• ✅ No "Unknown Module" Alerts in Palo Alto PAN-OS
• ✅ Full DOM/DDM (DDMI) Real-Time Monitoring Supported (SFF-8472 Compliant)
• ✅ Duplex LC (UPC) Connector, Compact & Hot-Pluggable SFP+ Form Factor
• ✅ High Reliability, MTBF Up to 1,000,000 Hours
• ✅ No Module Pairing Required, Direct Single Use Available

Important 10GBASE-SR Multimode Fiber Notice

This is a 10G SFP+ SR 850nm multimode module. For full 10Gbps transmission, 50/125μm OM3/OM4 multimode fiber (duplex LC) is required: 300m over OM3 and up to 400m over OM4. OM2 fiber is supported with reduced distance. Single-mode fiber is not compatible. No pairing required—plug-and-play with Palo Alto PAN-OS. Note: For PA-5400 series devices, ensure SFP+ ports are configured correctly for 10Gbps operation and avoid improper port remapping that may affect connectivity.

Full Palo Alto Networks Firewall Compatibility List

Palo Alto Networks Firewall Series (10G SFP+ Port Equipped)

• PA-5400 Series (Ports 9-20 support SFP+ 10Gbps operation)
• PA-3000 Series, PA-7000 Series, PA-8000 Series with 10G SFP+ ports
• All Palo Alto Networks Firewall models with 10G SFP+ ports (compatible with all PAN-OS versions)

Technical Specifications

Typical Applications

• Short-to-medium distance 10G connections for Palo Alto Networks Firewall devices in data centers and enterprise wiring closets
• Reliable 10G links using OM3/OM4 multimode fiber, suitable for campus networks and indoor deployments
• Palo Alto Networks Firewall deployments requiring high-speed, short-to-medium distance connectivity (up to 300m/400m) with stable performance
• Point-to-point 10G connections for Palo Alto Networks Firewall to switches, servers and network devices in data centers and enterprise environments
• Upgrade and replacement for Palo Alto PAN-SFP-PLUS-SR 10G SFP+ SR multimode modules
• Data center and enterprise scenarios requiring stable operation in commercial temperature environments with high-speed multimode connectivity

Legal Disclaimer

OptiSolid is an independent third-party optical transceiver company. We are not affiliated with, endorsed by, or sponsored by Palo Alto Networks. All brand names, trademarks and model numbers (including PAN-SFP-PLUS-SR) are used only for compatibility demonstration.

Frequently Asked Questions

Q: Can I use this SR multimode module alone with Palo Alto Networks Firewall?
A: Yes. No pairing required. Plug-and-play compatible with Palo Alto Networks Firewall 10G SFP+ ports, enabling stable 10Gbps transmission over OM3 up to 300m (400m over OM4).

Q: Will this show as an unknown device in Palo Alto PAN-OS?
A: No. It is fully programmed to avoid compatibility warnings and support normal monitoring in Palo Alto PAN-OS, including DOM/DDM data display.

Q: What fiber cable do I need?
A: 50/125μm OM3/OM4 multimode fiber (duplex LC) is required: 300m over OM3 and 400m over OM4. OM2 is supported with reduced distance. Single-mode fiber is not compatible.

Q: Is there any note for deploying with Palo Alto Networks Firewall?
A: Yes. For PA-5400 series devices, ensure SFP+ ports are configured correctly for 10Gbps operation and avoid improper port remapping. Ensure the multimode fiber is properly terminated and keep the module away from strong electromagnetic interference.

Q: Is this module compatible with all Palo Alto Networks Firewall 10G SFP+ ports?
A: Yes, it is fully compatible with all Palo Alto Networks Firewall models featuring 10G SFP+ ports, with no additional configuration needed. Suitable for data centers, enterprise wiring closets, campus networks and other short-to-medium distance deployment scenarios.
