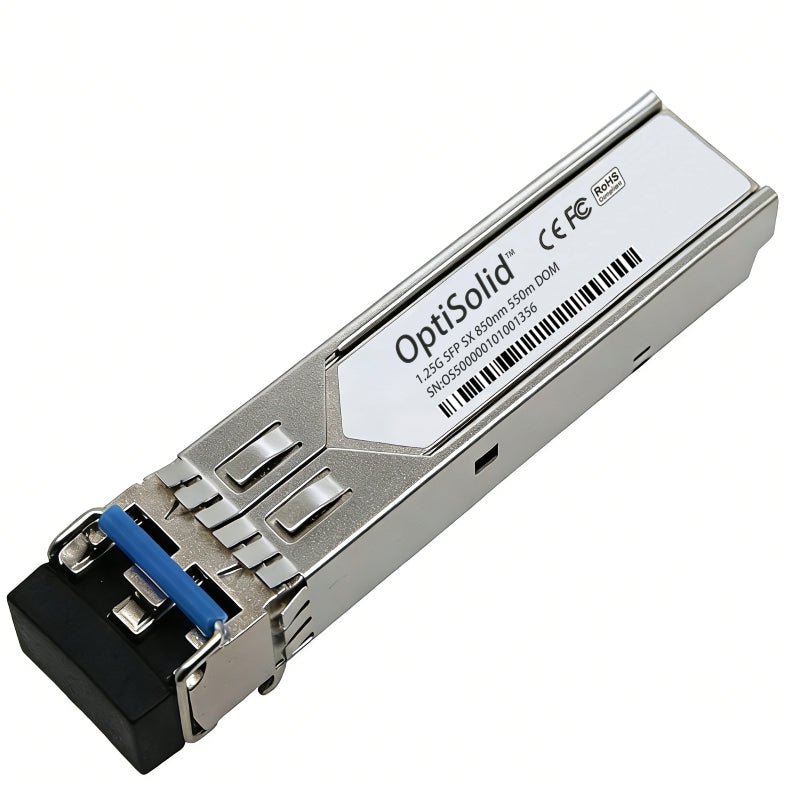

1G SFP SX 850nm 550m DOM Transceiver, Universal Compatible with All Major Brands
1G SFP SX 850nm 550m DOM Transceiver, Universal Compatible with All Major Brands
Couldn't load pickup availability
1G SFP SX 850nm 550m DOM Transceiver | Universal Compatible with All Major Brands
OptiSolid 1G SFP SX optical transceiver is a universal plug-and-play module designed for 1.25Gbps short-range Ethernet transmission. Compliant with IEEE 802.3z and SFP MSA standards, it supports seamless compatibility with ALL major network equipment brands, making it the ideal cost-effective solution for enterprise LANs, data centers, SMBs, and network upgrades.
- ✅ UNIVERSAL COMPATIBILITY: Works with 99% of commercial switches, routers, and firewalls in the market
- ✅ Stable short-range transmission: 850nm VCSEL laser, up to 550m over OM3 multimode fiber (MMF)
- ✅ Full DOM/DDM real-time monitoring for temperature, voltage, and optical power
- ✅ Hot-pluggable SFP form factor, zero configuration required
- ✅ Commercial operating temperature: 0°C ~ 70°C
Technical Specifications
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Transmission Distance | 550m (OM3), 275m (OM2), 550m (OM1) over Multimode Fiber (MMF) |
| Connector | LC Duplex |
| Laser Type | VCSEL Laser |
| DOM Support | Full DDM/DOM Real-time Monitoring |
| Operating Voltage | 3.3V |
| Operating Temperature | 0°C ~ 70°C (Commercial Grade) |
Universal Compatibility List
This module is fully tested and compatible with ALL major networking brands, including but not limited to:
Cisco, Huawei, ZTE, H3C, Juniper, Mellanox, Ubiquiti, MikroTik, TP-Link, D-Link, Netgear, Aruba, HP Enterprise, Dell, Force10, Brocade, Extreme Networks
100% plug-and-play, no compatibility alarms, no driver or firmware updates required.
Typical Applications
- Enterprise LAN & campus network short-range interconnection
- Data center 1G server and switch connections
- SMB network expansion and fault replacement
- IP surveillance and security camera systems
- Universal replacement for all brand 1G SFP SX modules
Frequently Asked Questions
Q: Is this module truly compatible with all brands?
A: Yes! It follows global SFP MSA standards and is compatible with 99% of commercial network devices.
Q: Do I need to configure anything before use?
A: No, it is 100% plug-and-play, hot-swappable, and ready to use immediately.
Q: What fiber cable do I need?
A: OM1/OM2/OM3 multimode fiber with LC-LC duplex connectors.
Q: Can I use this for data center internal connections?
A: Absolutely, it is widely used for short-range 1G data center transmission.
Legal Disclaimer
OptiSolid is an independent company of universal optical transceivers. Our products are designed to meet industry-wide MSA standards for universal interoperability. All brand names, trademarks, and model numbers mentioned are the property of their respective owners and are used solely for compatibility reference.
