Industrial Grade 10G SFP+ LR 1310nm 10km | 100% Compatible with Fortinet Firewall

Industrial Grade 10G SFP+ LR 1310nm 10km | 100% Compatible with Fortinet Firewall

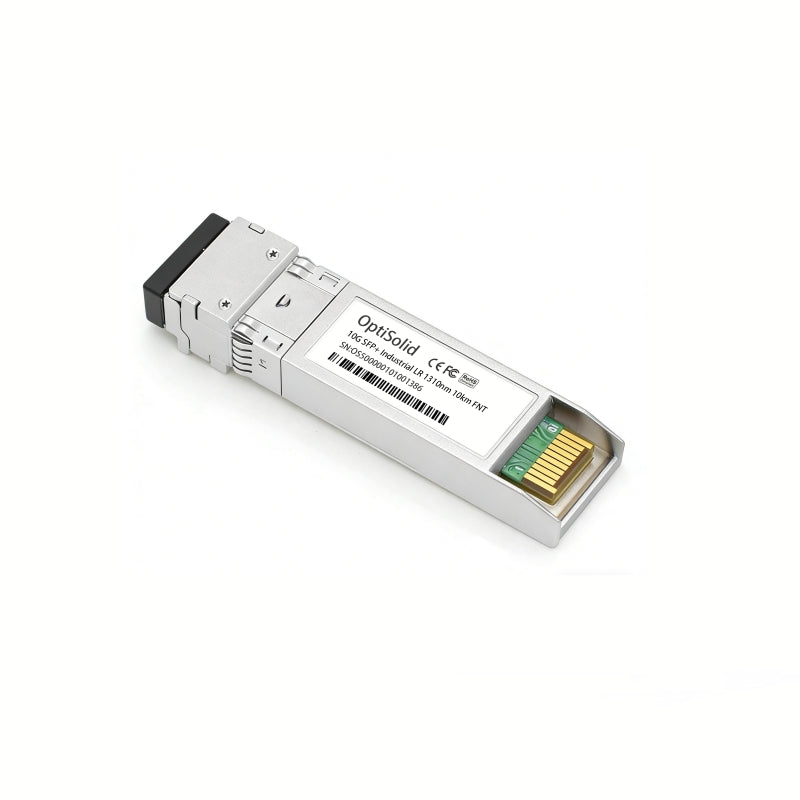

OptiSolid Industrial Grade 10G SFP+ LR transceiver is specially programmed for full compatibility with Fortinet Firewall 10G SFP+ ports. It adopts 1310nm DFB laser and single-mode fiber (SMF) transmission, featuring a standard duplex LC (UPC) interface and built-in MAXIM chip, delivering stable 10Gbps connectivity up to 10km over OS1/OS2 single-mode fiber. With an industrial temperature range of -40°C ~ 85°C, it operates stably in harsh industrial environments. Fully plug-and-play with no Fortinet compatibility warnings and no module pairing required, it is an ideal replacement for Fortinet FN-TRAN-SFP+LR series industrial-grade modules in cross-campus interconnection, remote industrial sites, outdoor long-distance deployments and Fortinet Firewall long-distance industrial scenarios.

• ✅ 100% Plug & Play with All Fortinet Firewall 10G SFP+ Ports
• ✅ 1310nm DFB Laser, 10km@OS1/OS2 Over Single-Mode Fiber (SMF)
• ✅ Built-in MAXIM Chip, Low Power Dissipation (≤1.2W) for Energy Efficiency
• ✅ Industrial Grade (-40°C ~ 85°C), Suitable for Harsh Industrial Environments
• ✅ No "Unknown Module" Alerts in Fortinet FortiOS
• ✅ Full DOM/DDM (DDMI) Real-Time Monitoring Supported (SFF-8472 Compliant)
• ✅ Duplex LC (UPC) Connector, Compact & Hot-Pluggable SFP+ Form Factor
• ✅ High Reliability, MTBF Up to 5,000,000 Hours
• ✅ No Module Pairing Required, Direct Single Use Available

Important Industrial Grade 10GBASE-LR Single-Mode Fiber Notice

This is an Industrial Grade 10G SFP+ LR 1310nm single-mode module. For full 10Gbps transmission up to 10km, 9/125μm OS1/OS2 single-mode fiber (duplex LC) is required. Multi-mode fiber is not compatible—it will cause severe signal loss and connection failure. No pairing required—plug-and-play with Fortinet FortiOS. Features wide operating temperature (-40°C ~ 85°C), anti-EMI design, and rugged housing for harsh industrial environments. Note: For Fortinet Firewall devices with NP6 chips (excluding NP6xlite), do not mix 10G and 1G interfaces to avoid bandwidth transmission issues.

Full Fortinet Firewall Compatibility List

Fortinet Firewall Series (10G SFP+ Port Equipped)

• FortiGate 600E, FortiGate 800E, FortiGate 1000E, FortiGate 1500D
• FortiGate 2000E, FortiGate 3000E, FortiGate 4000E, FortiGate 6000F
• All Fortinet Firewall models with 10G SFP+ ports (compatible with all FortiOS versions)

Technical Specifications

Typical Applications

• Long-distance 10G connections for Fortinet Firewall devices in cross-campus interconnection, remote industrial sites and outdoor deployments
• Reliable 10G links using OS1/OS2 single-mode fiber, suitable for long-distance industrial scenarios
• Fortinet Firewall deployments requiring industrial-grade reliability, high-speed, long-distance connectivity (up to 10km) with anti-interference capability
• Point-to-point 10G connections for Fortinet Firewall to switches, servers and industrial equipment in remote factories, mines, oil and gas fields and other harsh environments
• Upgrade and replacement for Fortinet FN-TRAN-SFP+LR 10G SFP+ LR industrial-grade single-mode modules
• Industrial scenarios requiring stable operation in extreme temperatures (-40°C ~ 85°C) with long-distance transmission needs

Legal Disclaimer

OptiSolid is an independent third-party optical transceiver company. We are not affiliated with, endorsed by, or sponsored by Fortinet. All brand names, trademarks and model numbers (including FN-TRAN-SFP+LR) are used only for compatibility demonstration.

Frequently Asked Questions

Q: Can I use this industrial-grade LR module alone with Fortinet Firewall?
A: Yes. No pairing required. Plug-and-play compatible with Fortinet Firewall 10G SFP+ ports, enabling stable 10Gbps transmission over OS1/OS2 single-mode fiber up to 10km, even in harsh industrial environments.

Q: Will this show as an unknown device in Fortinet FortiOS?
A: No. It is fully programmed to avoid compatibility warnings and support normal monitoring in Fortinet FortiOS, including DOM/DDM data display.

Q: What fiber cable do I need?
A: 9/125μm OS1/OS2 single-mode fiber (duplex LC) is required for full 10km 10Gbps transmission. Multi-mode fiber is not compatible and will cause severe signal loss and connection failure.

Q: Is there any note for deploying with Fortinet Firewall?
A: Yes. For Fortinet Firewall devices with NP6 chips (excluding NP6xlite), do not mix 10G and 1G interfaces. Ensure the single-mode fiber is properly terminated and take protective measures against mechanical impact in industrial environments.

Q: Is this module compatible with all Fortinet Firewall 10G SFP+ ports?
A: Yes, it is fully compatible with all Fortinet Firewall models featuring 10G SFP+ ports, with no additional configuration needed. Suitable for cross-campus interconnection, remote industrial sites, outdoor deployments and other long-distance industrial scenarios.
